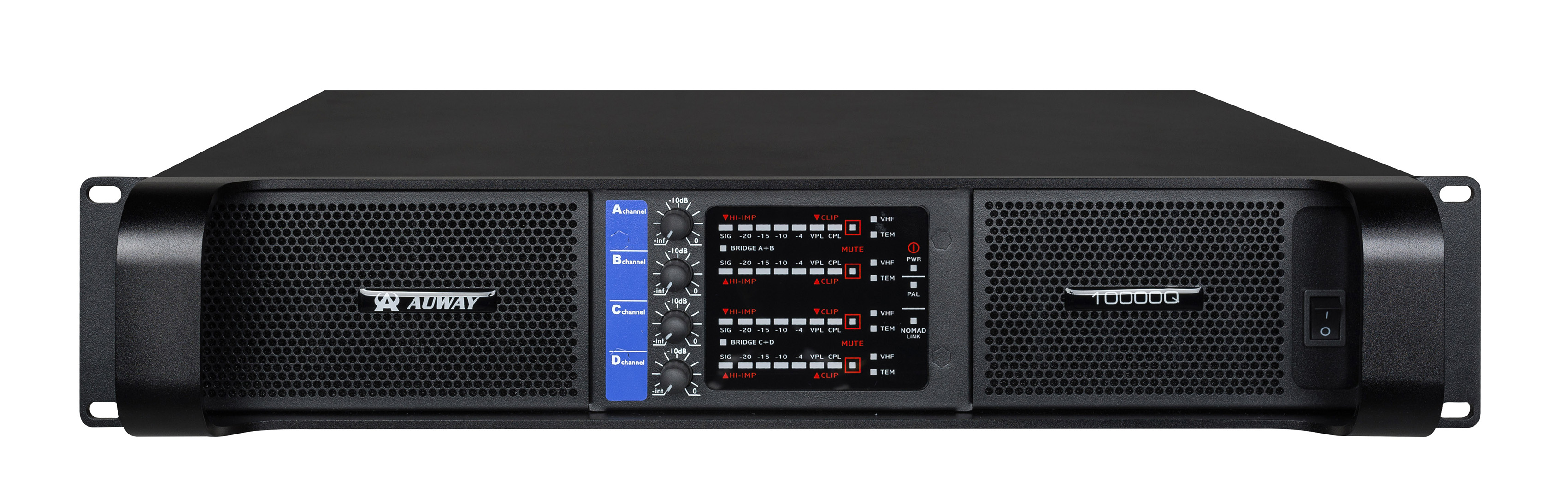

| Model | FP10000Q | |||
|---|---|---|---|---|
| 8ΩStereo Power | 4x1350w | |||
| 4ΩStereo Power | 4x2150w | |||
| Channels | 4 channel | |||
| Outputs Connectors | Speakon Connectors | |||
| Frequency Response | 20Hz-20KHz(+0/-0.5dB) | |||
| Signal Noise Ration(dB) | 103dB | |||
| THD+N(rated power,40/KHz)% | <0.05%20Hz-20KHz | |||
| Input Impedance | 20K Ω balanced / 10K Ω unbalanced | |||
| Input Gain | Rear Panel:0.775V/1.0V/1.4V | |||
| Fan | 4PCS temperature control cooling Fan | |||
| Protection | Protection of short circuit,open circuit,overheat,DC,super sonic frequency etc | |||
| Indicators(per Channel) | Protect indicator,signal indicator,work indicator | |||
| Power Requirement | 200-240v~50-60Hz | |||
| Dimensions | 480X410X90MM | |||
| Transport Dimension | ||||
| Net Weight | 15KG | |||
| Gross Weight | 17KG | |||
